Description

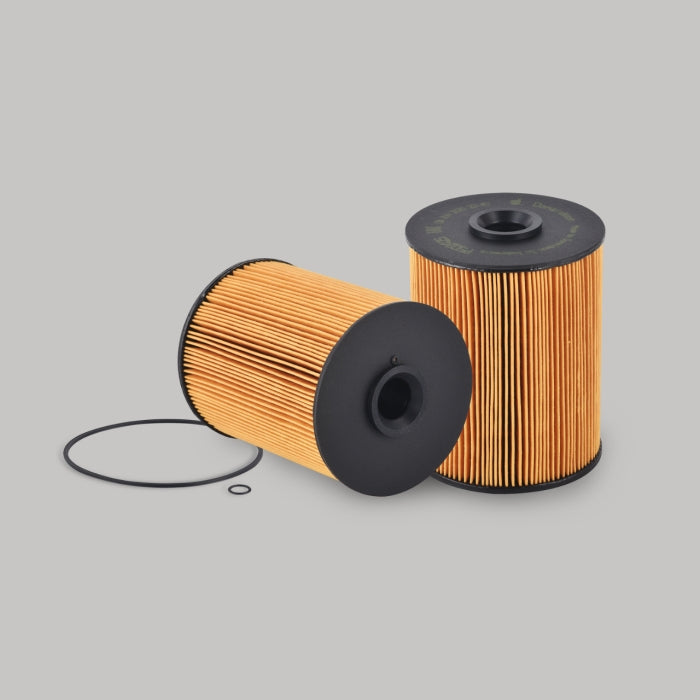

Donaldson fuel filters are designed to help prevent premature injector and pump wear by delivering cleaner fuel to your engines.
• Reliable performance – pressure relief valve allows fuel to rise slowly.
• Compatible with existing electronic filter life indicators.
• Cellulose media – effectively meets application efficiency and capacity requirements.
• Reliable performance – pressure relief valve allows fuel to rise slowly.
• Compatible with existing electronic filter life indicators.
• Cellulose media – effectively meets application efficiency and capacity requirements.
Specifications:
| Efficiency Beta 20 | 8 micron |
| Outer Diameter | 90 mm (3.54 inch) |
| Inner Diameter | 19 mm (0.75 inch) |
| Length | 110 mm (4.33 inch) |
| Gasket OD | 25 mm (0.98 inch) |
| Gasket ID | 22 mm (0.87 inch) |
| Efficiency 50% | 2 micron |
| Efficiency 95% | 20 micron |
| Efficiency 99% | 9 micron |
| Efficiency Beta 75 | 9 micron |
| Efficiency Test Std | ISO 4548-12, JIS D 1617 |
| Collapse Burst | 6.9 bar (100 psi) |
| Style | Cartridge |
| Media Type | Cellulose |
