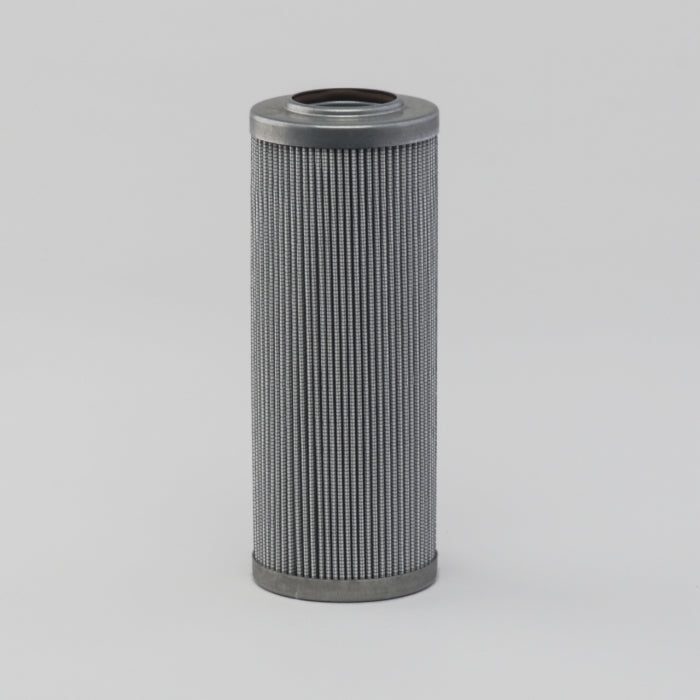

Description
High-performance DT Hydraulic Cartridges utilize Donaldson Synteq™ media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.
Specifications:
| Seal Material | Viton |
| Outer Diameter | 78 mm (3.07 inch) |
| Inner Diameter | 43.5 mm (1.71 inch) |
| Gasket OD | 47.76 mm (1.88 inch) |
| Gasket ID | 42.52 mm (1.67 inch) |
| Overall Length | 208.8 mm (8.22 inch) |
| Efficiency Beta 1000 | 12 micron |
| Collapse Burst | 20 bar (290 psi) |
| Style | Cartridge |
| Series | W061, W350, HPK03, FPK04, HPK04, W620 |
| Brand | DT High-Performance |
| Media Type | Synthetic |
| Primary Application | PALL HC9600FKS8H |
