Description

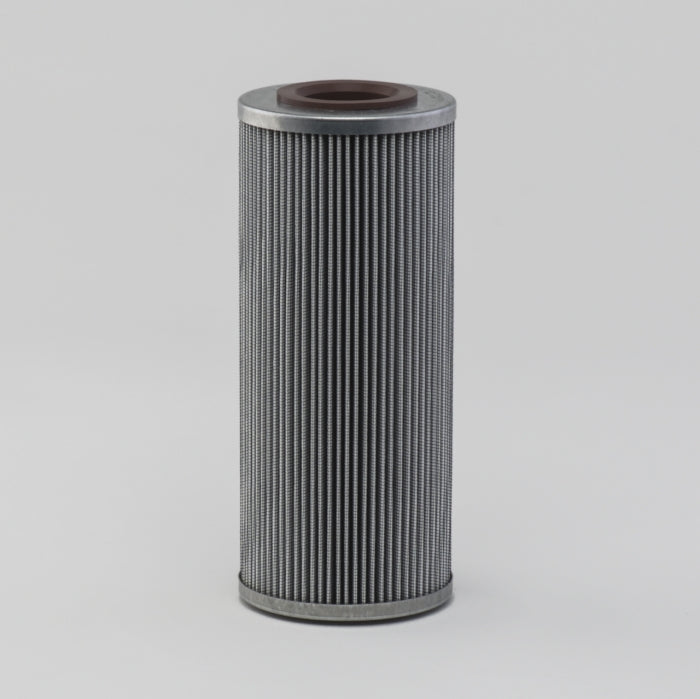

High-performance DT Hydraulic Cartridges utilize Donaldson Synteq™ media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.
Specifications:
| Seal Material | Viton |
| Outer Diameter | 97.9 mm (3.85 inch) |
| Inner Diameter | 40.8 mm (1.61 inch) |
| Length | 228.6 mm (9 inch) |
| Overall Length | 235.7 mm (9.28 inch) |
| Efficiency Beta 1000 | 12 micron |
| Collapse Burst | 20 bar (290 psi) |
| Style | Cartridge |
| Series | WL15, WL16, W451 |
| Brand | DT High-Performance |
| Media Type | Synthetic |
| Primary Application | SCHROEDER KZ10 |
