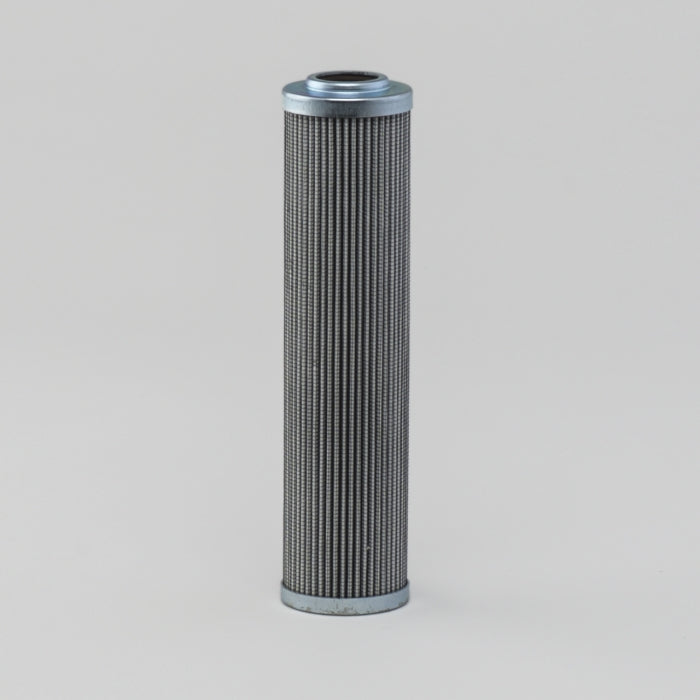

Description
High-performance DT Hydraulic Cartridges utilize Donaldson Synteq™ media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.
Specifications:
| Seal Material | Viton |
| Outer Diameter | 50 mm (1.97 inch) |
| Inner Diameter | 24.1 mm (0.95 inch) |
| Overall Length | 205.5 mm (8.09 inch) |
| Efficiency Beta 1000 | 8 micron |
| Collapse Burst | 10.3 bar (149 psi) |
| Style | Cartridge |
| Brand | DT High-Performance |
| Media Type | Synthetic |
| Primary Application | PALL HC9800FKN8H |
