Description

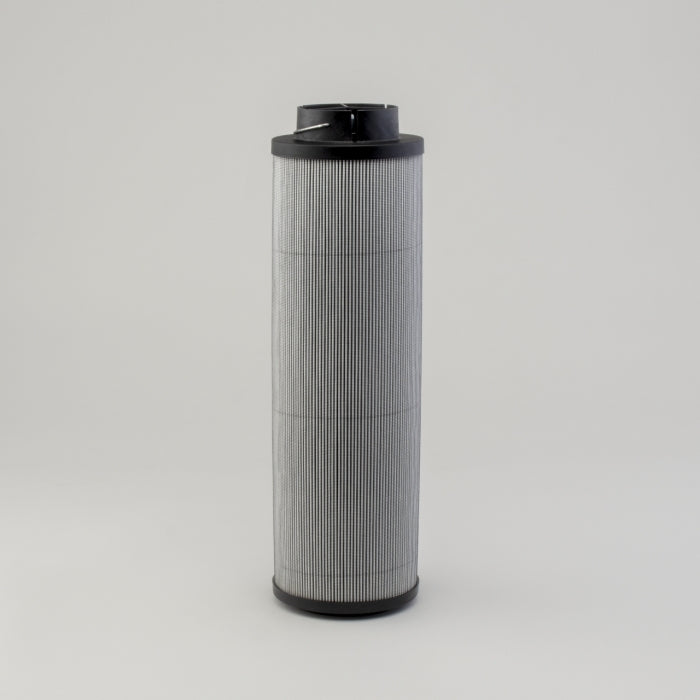

High-performance DT Hydraulic Cartridges utilize Donaldson Synteq™ media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.
Specifications:
| Outer Diameter 2 | 144.4 mm (5.69 inch) |
| Outer Diameter | 145.22 mm (5.72 inch) |
| Inner Diameter | 96 mm (3.78 inch) |
| Gasket ID | 94.8 mm (3.73 inch) |
| Overall Length | 481.6 mm (18.96 inch) |
| Efficiency Beta 1000 | 12 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 3 bar (44 psi) |
| Collapse Burst | 10.3 bar (149 psi) |
| Media Brand | DT High-Performance |
| Media Type | Synthetic |
