Description

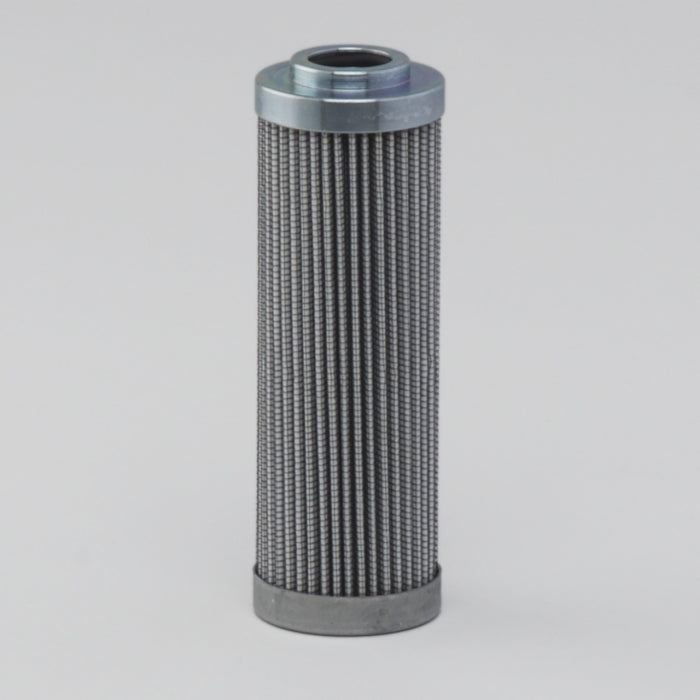

High-performance DT Hydraulic Cartridges utilize Donaldson Synteq™ media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.
Specifications:
| Seal Material | Viton |
| Outer Diameter | 44.2 mm (1.74 inch) |
| Inner Diameter | 19.7 mm (0.78 inch) |
| Gasket OD | 23.96 mm (0.94 inch) |
| Gasket ID | 18.72 mm (0.74 inch) |
| Overall Length | 133.83 mm (5.27 inch) |
| Efficiency Beta 1000 | 12 micron |
| Collapse Burst | 10.3 bar (149 psi) |
| Style | Cartridge |
| Brand | DT High-Performance |
| Media Type | Synthetic |
| Primary Application | SCHROEDER NZ10 |
