Description

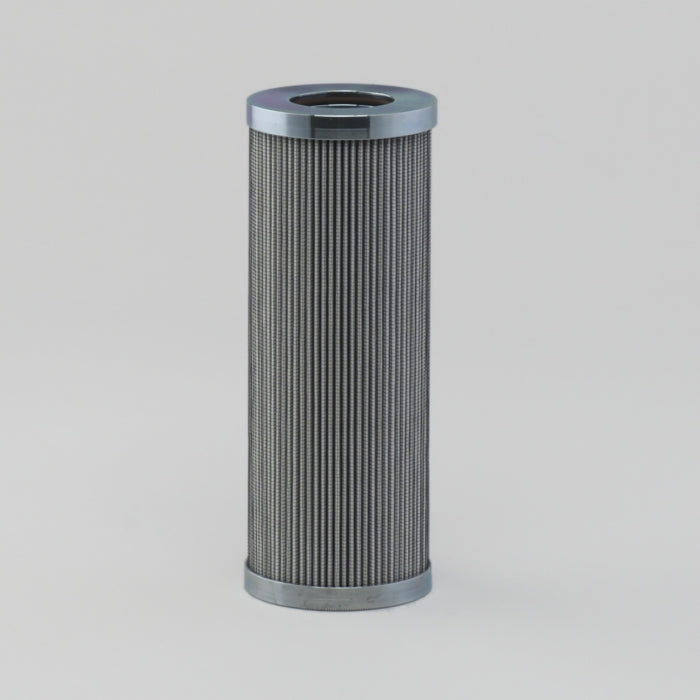

• High-performance Hydraulic Cartridges utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
Specifications:
| Seal Material | Viton |
| Outer Diameter | 78.87 mm (3.11 inch) |
| Inner Diameter | 43.2 mm (1.7 inch) |
| Length | 208.9 mm (8.22 inch) |
| Efficiency Beta 1000 | 12 micron |
| Collapse Burst | 207 bar (3002 psi) |
| Style | Cartridge |
| Series | HPK03, FPK04, HPK04 |
| Media Type | Synthetic |
| Primary Application | PALL HC9601FUT8H |
