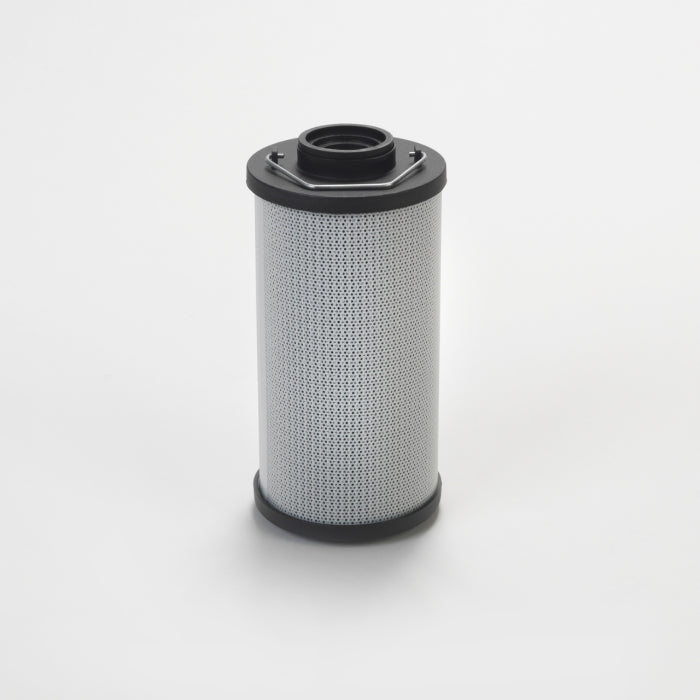

Description
• High-performance Hydraulic Cartridges utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
Specifications:
| Outer Diameter | 95 mm (3.74 inch) |
| Inner Diameter | 48 mm (1.89 inch) |
| Length | 195 mm (7.68 inch) |
| Gasket OD | 53 mm (2.09 inch) |
| Gasket ID | 50 mm (1.97 inch) |
| Efficiency Beta 20 | 75 micron |
| Efficiency Beta 75 | 10 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 3 bar (44 psi) |
| Collapse Burst | 30 bar (435 psi) |
| Style | Cartridge |
| Media Type | Synthetic |
