Description

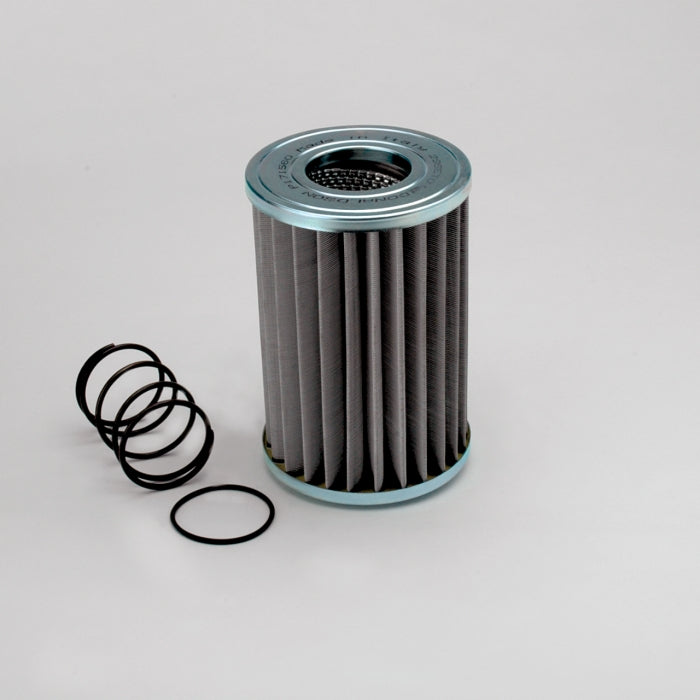

• High-performance Hydraulic Cartridges utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
Specifications:
| Mesh Rating | 90 micron |
| Outer Diameter | 140 mm (5.51 inch) |
| Inner Diameter | 65.5 mm (2.58 inch) |
| Length | 203 mm (7.99 inch) |
| Efficiency Beta 2 | 90 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.5 bar (22 psi) |
| Collapse Burst | 10 bar (145 psi) |
| Style | Cartridge |
| Media Type | Wire Mesh |
