Description

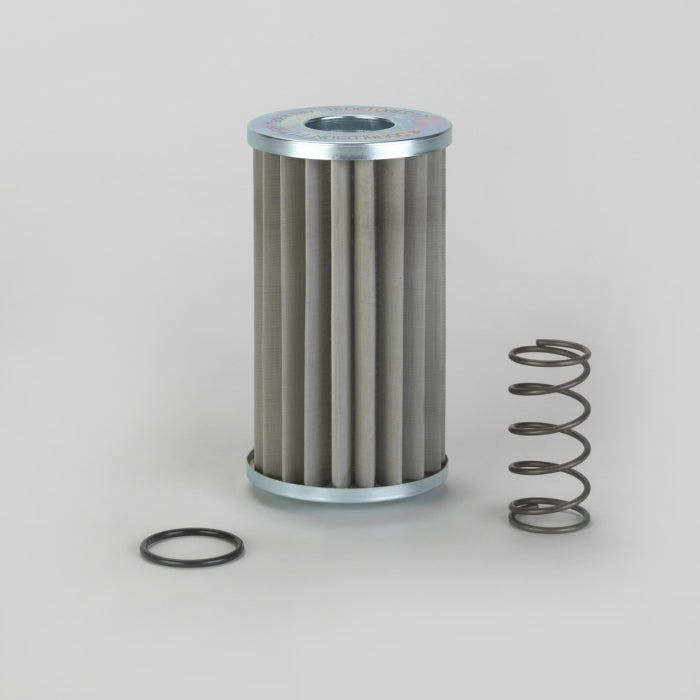

• High-performance Hydraulic Cartridges utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
Specifications:
| Outer Diameter | 95 mm (3.74 inch) |
| Inner Diameter | 41 mm (1.61 inch) |
| Length | 169 mm (6.65 inch) |
| Overall Length | 176 mm (6.93 inch) |
| Efficiency Beta 2 | 60 micron |
| Efficiency Test Std | ISO 4572 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.5 bar (22 psi) |
| Collapse Burst | 10 bar (145 psi) |
| Style | Cartridge |
| Media Type | Wire Mesh |
| Primary Application | 1 G/BSPP |
