Description

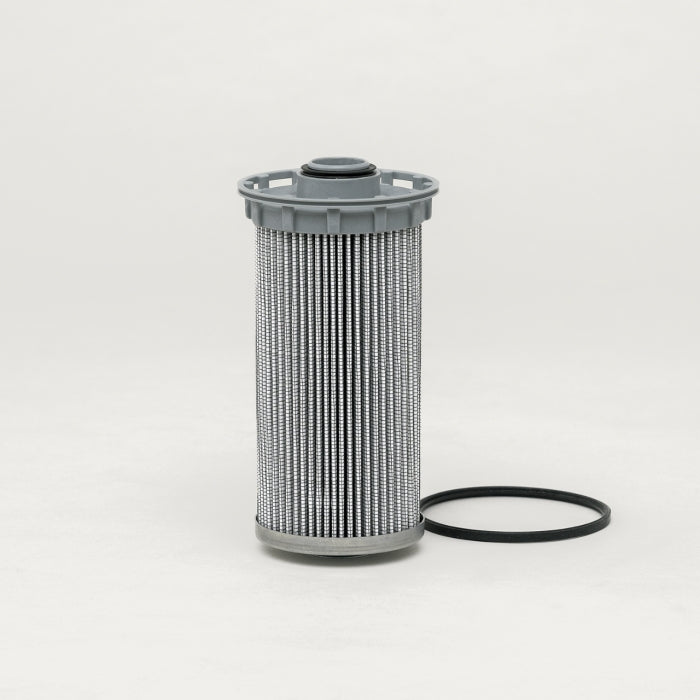

• High-performance Hydraulic Cartridges utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
Specifications:
| Outer Diameter | 86.6 mm (3.41 inch) |
| Inner Diameter | 21.5 mm (0.85 inch) |
| Overall Length | 162.4 mm (6.39 inch) |
| Efficiency Beta 200 | 8 micron |
| Efficiency Test Std | ISO 16889 |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 3.5 bar (51 psi) |
| Collapse Burst | 20 bar (290 psi) |
| Maximum Operating Temperature | 121 °C (250 °F) |
| Style | Cartridge |
