Description

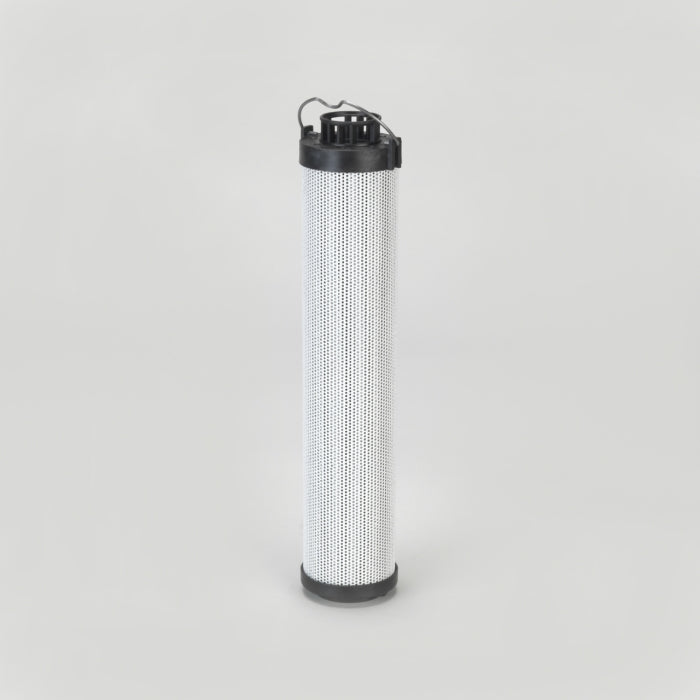

• High-performance Hydraulic Cartridges utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
Specifications:
| Outer Diameter | 60 mm (2.36 inch) |
| Inner Diameter | 36 mm (1.42 inch) |
| Inner Diameter 2 | 68 mm (2.68 inch) |
| Length | 295 mm (11.61 inch) |
| Efficiency Beta 1000 | 12 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 3 bar (44 psi) |
| Collapse Burst | 20 bar (290 psi) |
| Media Type | Synthetic |
| Primary Application | Hydac 0185R010 Series |
