Description

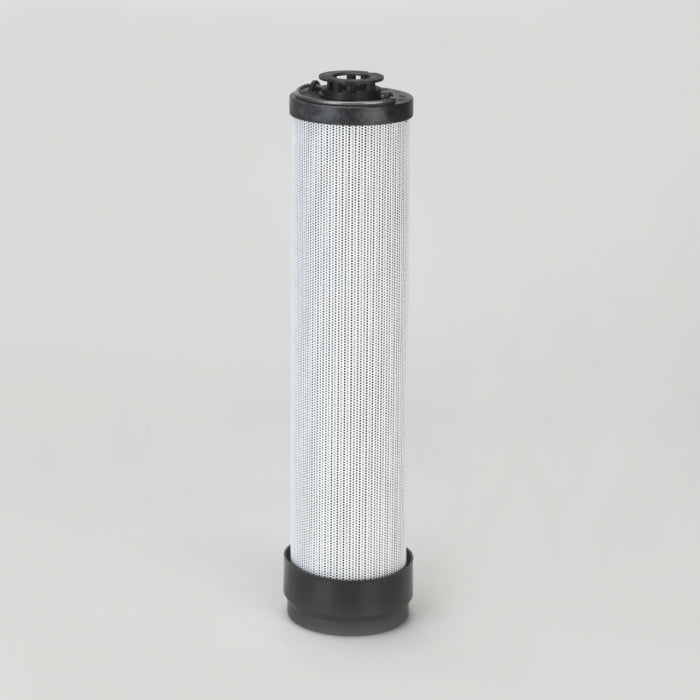

• High-performance Hydraulic Cartridges utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed OEM specifications.
Specifications:
| Seal Material | Viton |
| Outer Diameter | 88 mm (3.46 inch) |
| Inner Diameter | 46 mm (1.81 inch) |
| Length | 411 mm (16.18 inch) |
| Efficiency Beta 1000 | 12 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 3 bar (44 psi) |
| Collapse Burst | 20 bar (290 psi) |
| Media Type | Synthetic |
