Description

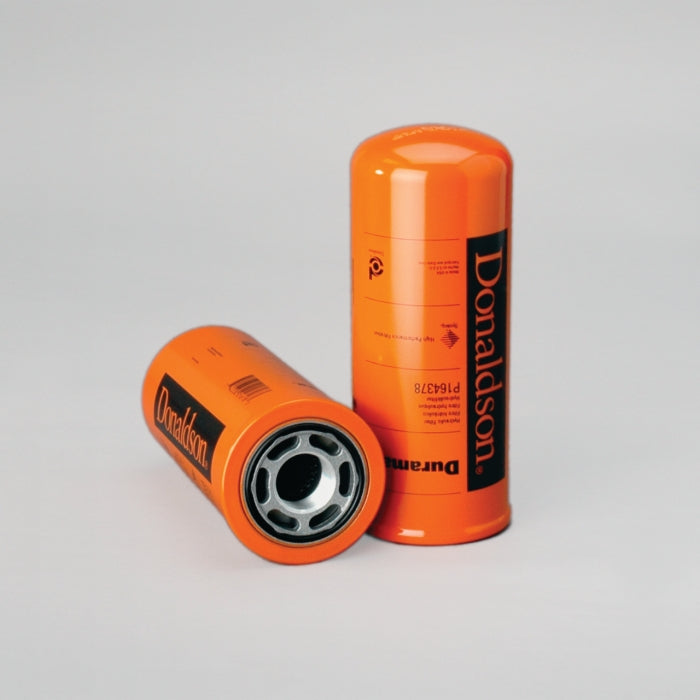

• Duramax filters are the highest rated medium pressure spin-on filters available in the market.
• Duramax filters are proven, reliable, long-lived and easy to install.
• A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
• Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits
• Improved performance including higher burst, greater fatigue strength and longer filter life.
• Duramax filters are proven, reliable, long-lived and easy to install.
• A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
• Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits
• Improved performance including higher burst, greater fatigue strength and longer filter life.
Specifications:
| Outer Diameter | 97 mm (3.82 inch) |
| Thread Size | 1 3/8-12 UN |
| Length | 239.78 mm (9.44 inch) |
| Gasket OD | 70 mm (2.76 inch) |
| Gasket ID | 63 mm (2.48 inch) |
| Efficiency Beta 2 | 4 micron |
| Efficiency Beta 1000 | 11 micron |
| Efficiency Test Std | ISO 16889 |
| Style | Spin-On |
| Series | HMK04/24 |
| Brand | Duramax® |
| Media Type | Synteq XP |
