Description

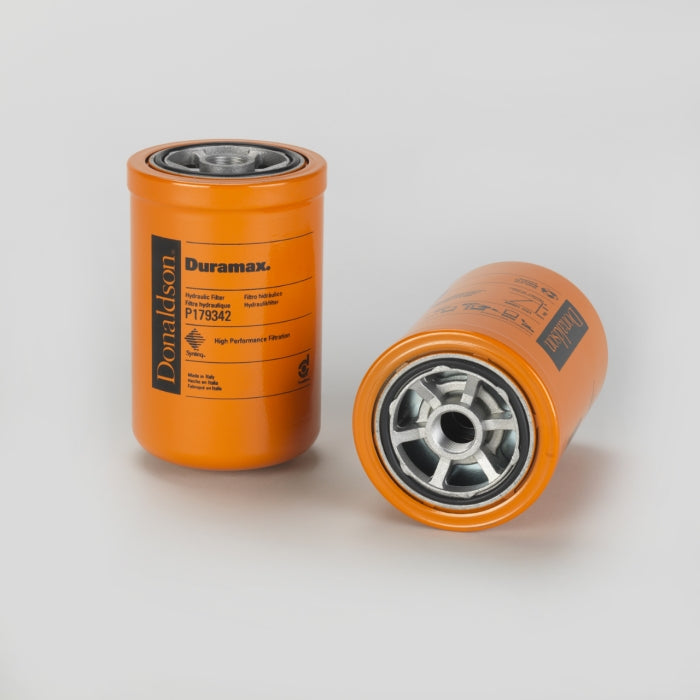

• Duramax filters are the highest rated medium pressure spin-on filters available in the market.
• Duramax filters are proven, reliable, long-lived and easy to install.
• A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
• Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits
• Improved performance including higher burst, greater fatigue strength and longer filter life.
• Duramax filters are proven, reliable, long-lived and easy to install.
• A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
• Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits
• Improved performance including higher burst, greater fatigue strength and longer filter life.
Specifications:
| Outer Diameter | 97 mm (3.82 inch) |
| Thread Size | 13/16-16 UN |
| Length | 151.64 mm (5.97 inch) |
| Gasket OD | 70.15 mm (2.76 inch) |
| Gasket ID | 63 mm (2.48 inch) |
| Efficiency Beta 1000 | 25 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 3.5 bar (51 psi) |
| Style | Spin-On |
| Media Type | Synthetic |
| Primary Application | CASE/CASE IH 254686A1 |
