Description

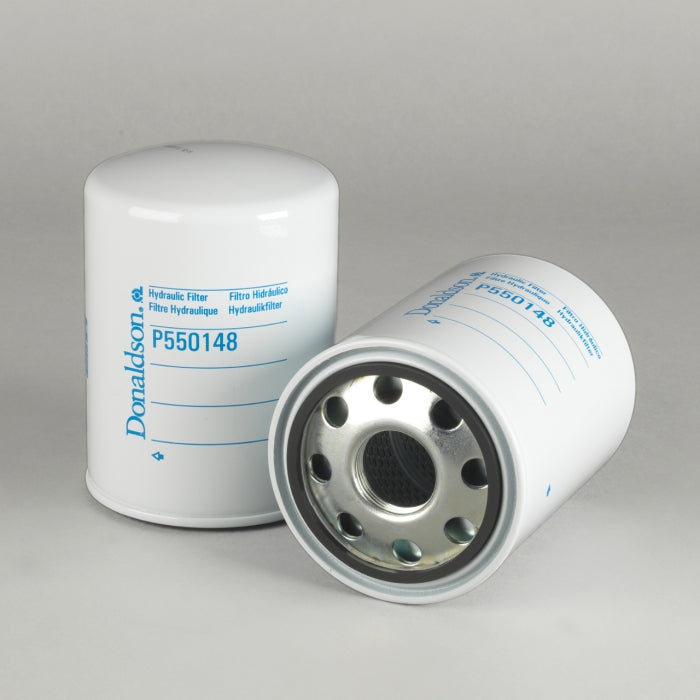

• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Outer Diameter | 128.9 mm (5.07 inch) |
| Thread Size | 1 1/4 BSP/G |
| Length | 180.2 mm (7.09 inch) |
| Gasket OD | 106.8 mm (4.20 inch) |
| Gasket ID | 97 mm (3.82 inch) |
| Efficiency Beta 2 | 10 micron |
| Efficiency Beta 200 | 32 micron |
| Efficiency Beta 1000 | 36 micron |
| Efficiency Test Std | ISO 16889 |
| Collapse Burst | 6.9 bar (100 psi) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | UCC HYDRAULICS MX1591410 |
