Description

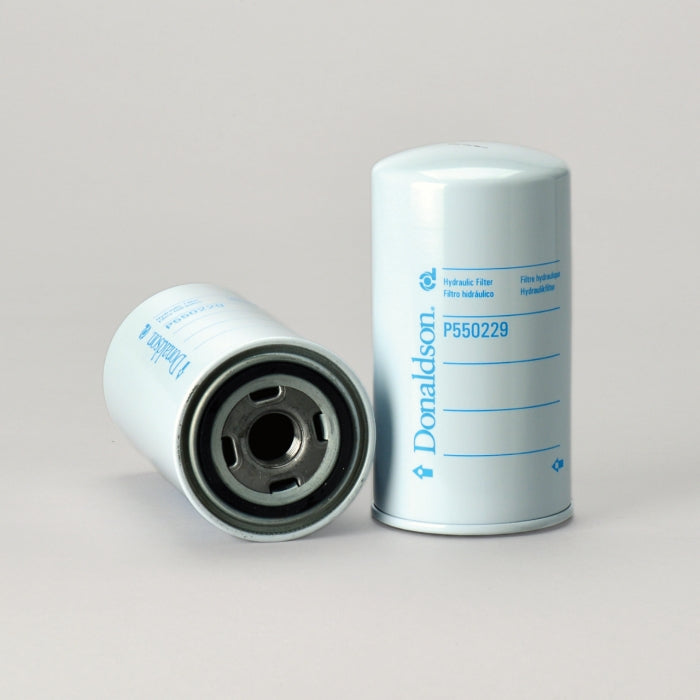

• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Outer Diameter | 97 mm (3.82 inch) |
| Thread Size | 1-12 UN |
| Length | 178 mm (7.01 inch) |
| Gasket OD | 71 mm (2.80 inch) |
| Gasket ID | 61 mm (2.40 inch) |
| Efficiency Beta 2 | 17 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.1 bar (30 psi) |
| Bypass Valve Setting HR | 2.9 bar (42 psi) |
| Style | Spin-On |
| Media Type | Cellulose |
