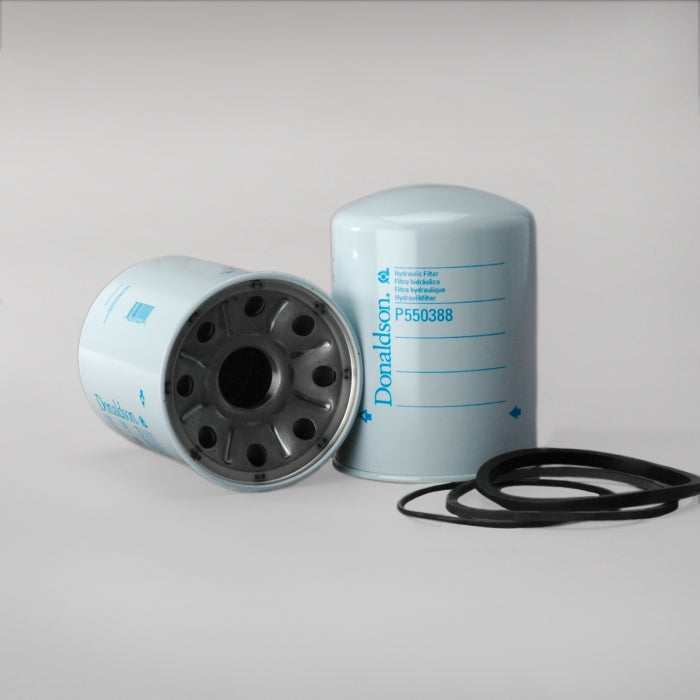

Description
• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Outer Diameter | 128.2 mm (5.05 inch) |
| Thread Size | 1 1/2-16 UN |
| Length | 182.7 mm (7.19 inch) |
| Gasket OD | 129.6 mm (5.10 inch) |
| Gasket ID | 122 mm (4.80 inch) |
| Efficiency Beta 2 | 7 micron |
| Efficiency Beta 1000 | 23 micron |
| Style | Spin-On |
| Series | W023, SP50/60, SP80/90, SP100/120 |
| Media Type | Cellulose |
