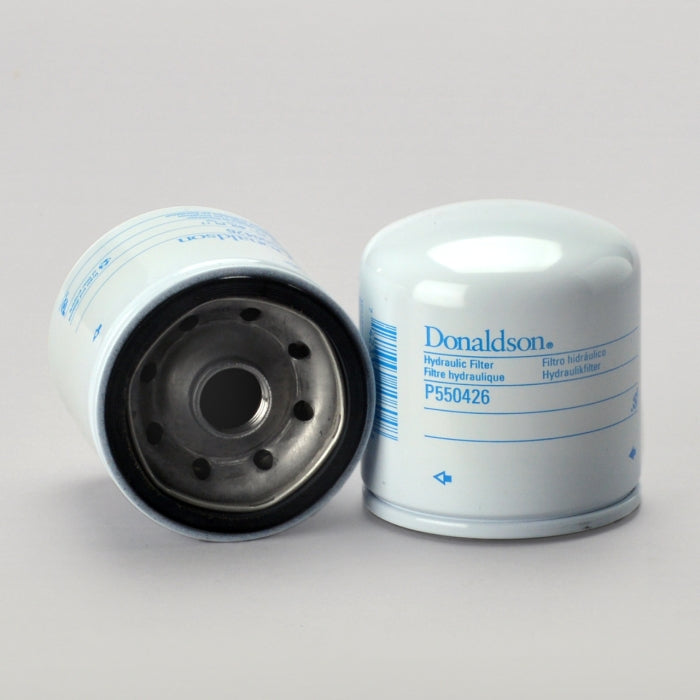

Description
• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Outer Diameter | 76.8 mm (3.02 inch) |
| Thread Size | 3/4-16 UN |
| Length | 82.8 mm (3.26 inch) |
| Gasket OD | 70.2 mm (2.76 inch) |
| Gasket ID | 60.5 mm (2.38 inch) |
| Efficiency Beta 2 | 7 micron |
| Efficiency Beta 1000 | 23 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.2 bar (17 psi) |
| Bypass Valve Setting HR | 1.6 bar (23 psi) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | ZINGA BE1018 |
