Description

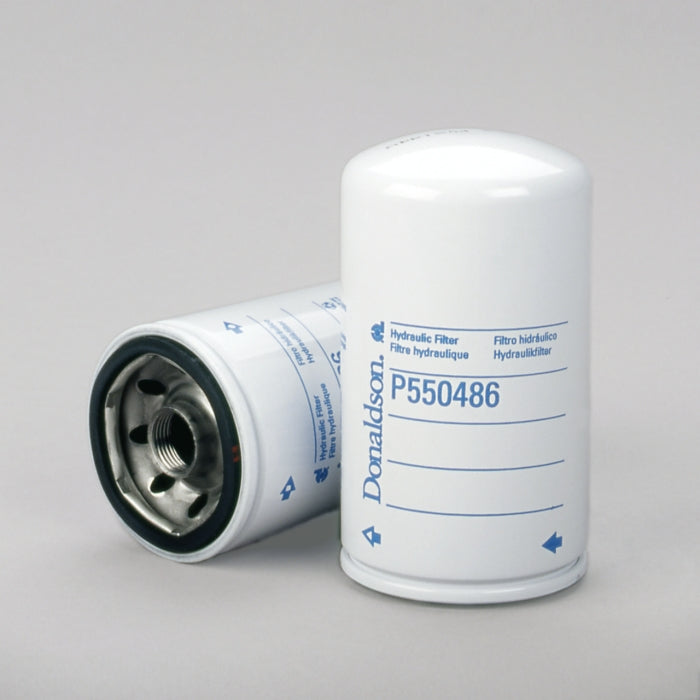

• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Outer Diameter | 77.4 mm (3.05 inch) |
| Thread Size | 13/16-16 UN |
| Length | 139.7 mm (5.50 inch) |
| Gasket OD | 69 mm (2.72 inch) |
| Gasket ID | 59.3 mm (2.33 inch) |
| Efficiency Beta 2 | 5 micron |
| Efficiency Beta 1000 | 24 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.4 bar (35 psi) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | CATERPILLAR 1194740 |
