Description

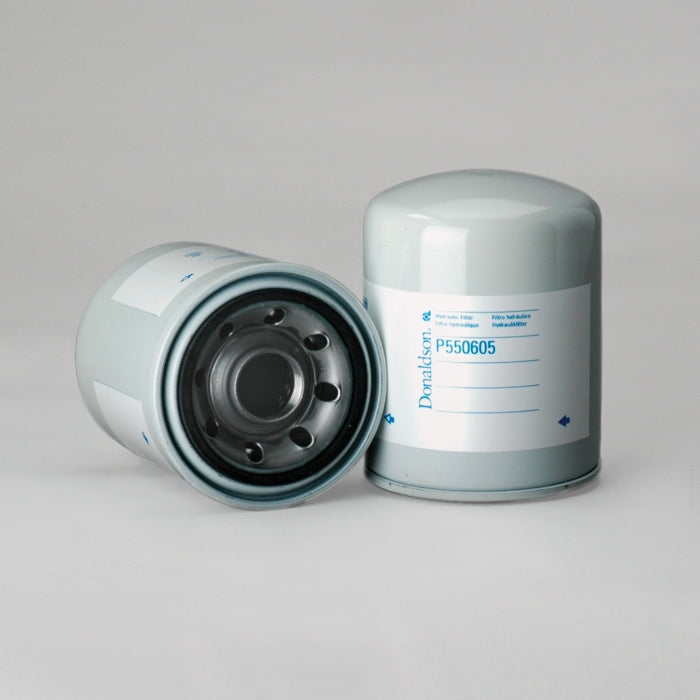

• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Outer Diameter | 139.7 mm (5.50 inch) |
| Thread Size | 1 1/2-16 UN |
| Length | 177.8 mm (7.00 inch) |
| Gasket OD | 110.74 mm (4.36 inch) |
| Gasket ID | 100.58 mm (3.96 inch) |
| Efficiency Beta 2 | 17 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.5 bar (22 psi) |
| Style | Spin-On |
