Description

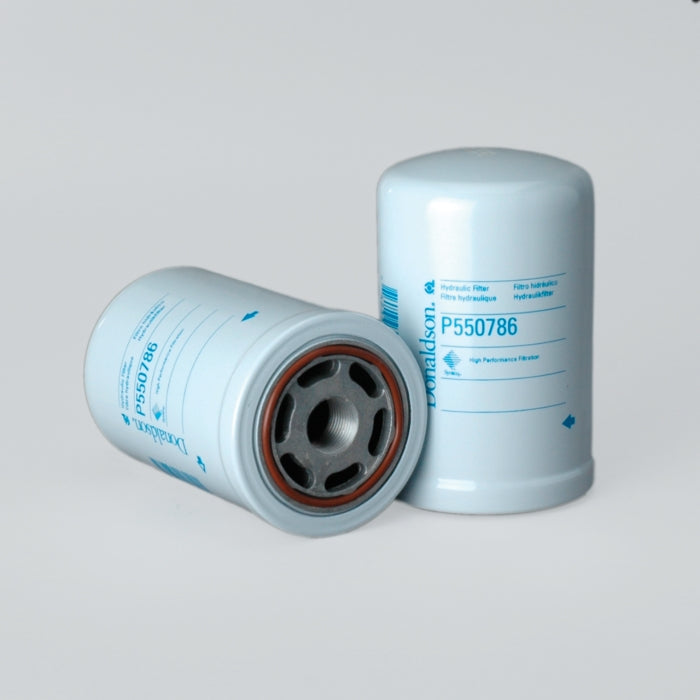

• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Outer Diameter | 94.23 mm (3.71 inch) |
| Thread Size | 1-12 UN |
| Length | 151.64 mm (5.97 inch) |
| Gasket OD | 70.15 mm (2.76 inch) |
| Gasket ID | 63.1 mm (2.48 inch) |
| Efficiency Beta 2 | 7 micron |
| Efficiency Beta 1000 | 23 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1.51 bar (22 psi) |
| Style | Spin-On |
| Media Type | Synthetic |
| Primary Application | LINDE 0009830633 |
