Description

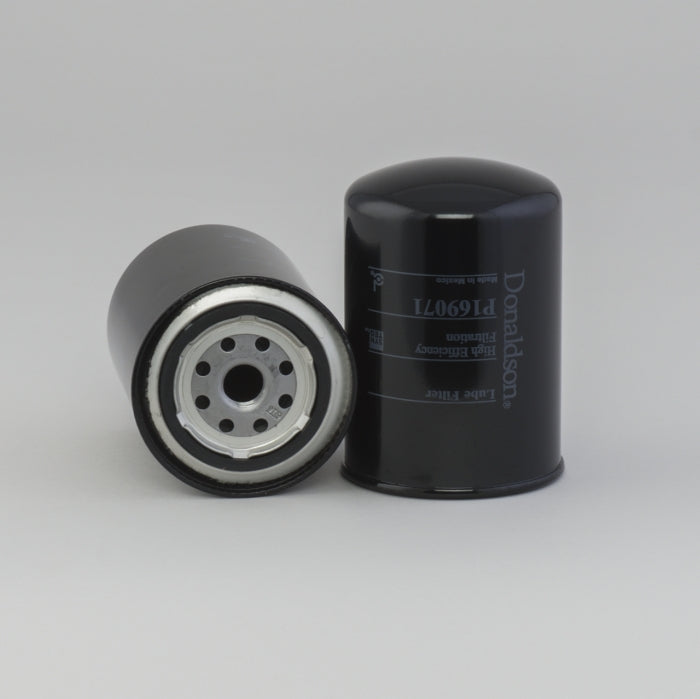

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 93.2 mm (3.67 inch) |
| Thread Size | 3/4-16 UN |
| Length | 135.1 mm (5.32 inch) |
| Gasket OD | 72.4 mm (2.85 inch) |
| Gasket ID | 62.7 mm (2.47 inch) |
| Efficiency 99% | 22 micron |
| Efficiency Beta 75 | 30 micron |
| Efficiency Test Std | ISO 4572 |
| Anti-Drainback Valve | No |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 0.69 bar (10 psi) |
| Media Type | Synthetic |
| Collapse Burst | 5.5 bar (80 psi) |
| Type | Full-Flow |
| Style | Spin-On |
