Description

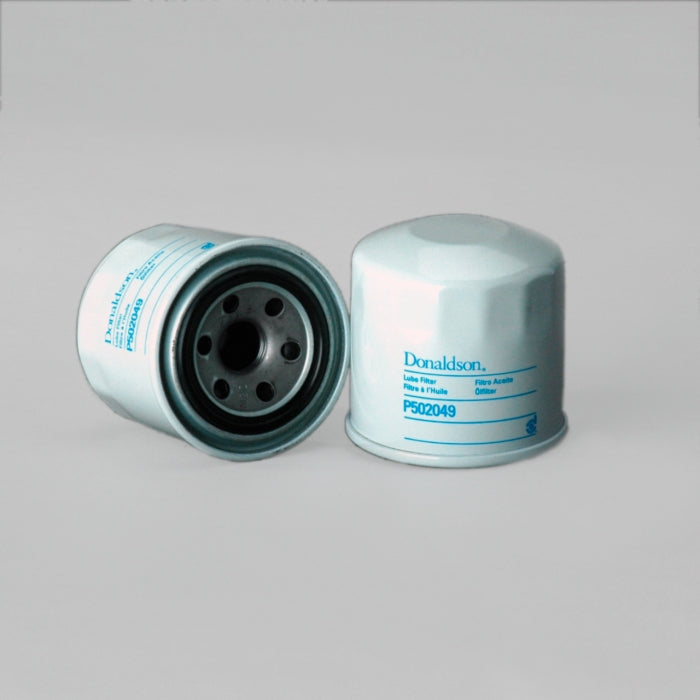

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 80 mm (3.15 inch) |
| Thread Size | M20 x 1.5 |
| Length | 80 mm (3.15 inch) |
| Gasket OD | 63 mm (2.48 inch) |
| Gasket ID | 51 mm (2.01 inch) |
| Efficiency 50% | 20 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.76 bar (11 psi) |
| Bypass Valve Setting HR | 1.17 bar (17 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | HONDA 15400PR3004 |
