Description

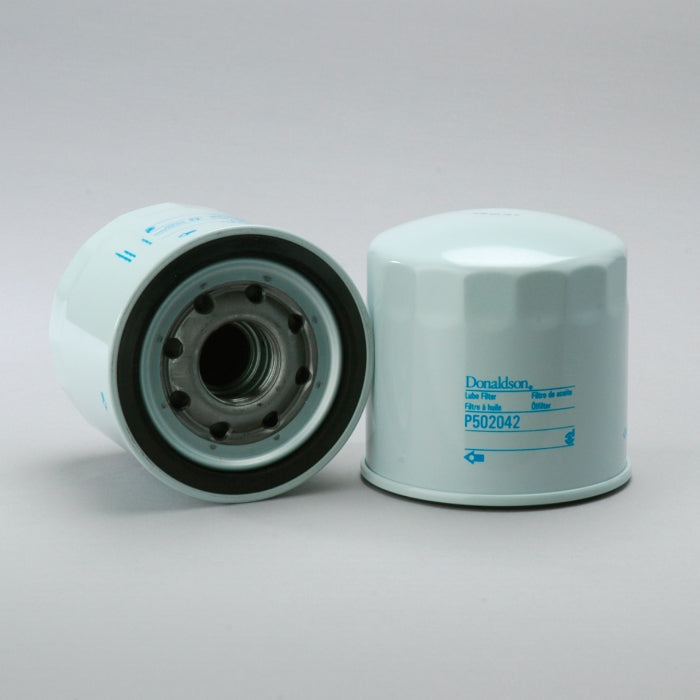

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 101 mm (3.98 inch) |
| Thread Size | 1-12 |
| Length | 125 mm (4.92 inch) |
| Gasket OD | 100 mm (3.94 inch) |
| Gasket ID | 88 mm (3.46 inch) |
| Efficiency 50% | 20 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.7 bar (25 psi) |
| Bypass Valve Setting HR | 2.1 bar (30 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | MAZDA TFYO14302 |
