Description

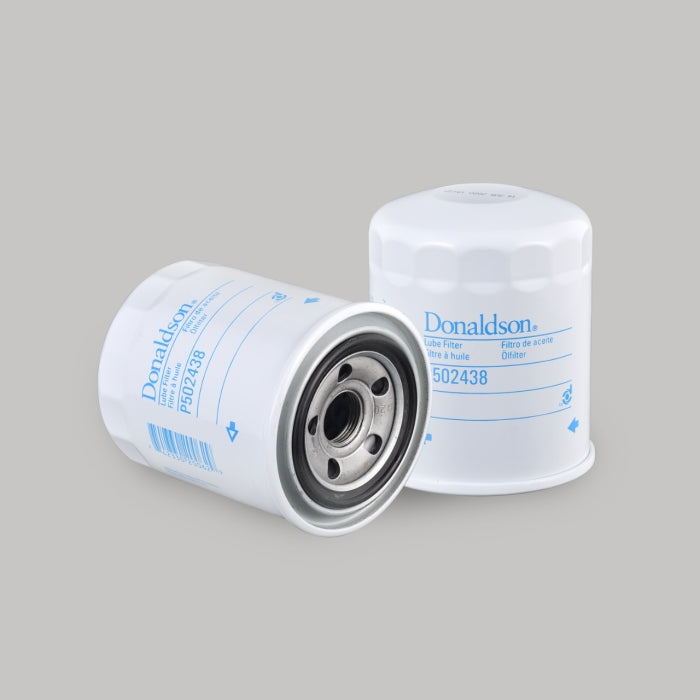

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Efficiency Beta 20 | 27 micron |
| Efficiency Beta 2 | 17 micron |
| Outer Diameter | 83.9 mm (3.30 inch) |
| Thread Size | M20 x 1.5 |
| Length | 100 mm (3.94 inch) |
| Gasket OD | 62.2 mm (2.45 inch) |
| Efficiency Beta 75 | 39 micron |
| Efficiency Test Std | ISO 16889 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1 bar (15 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
