Description

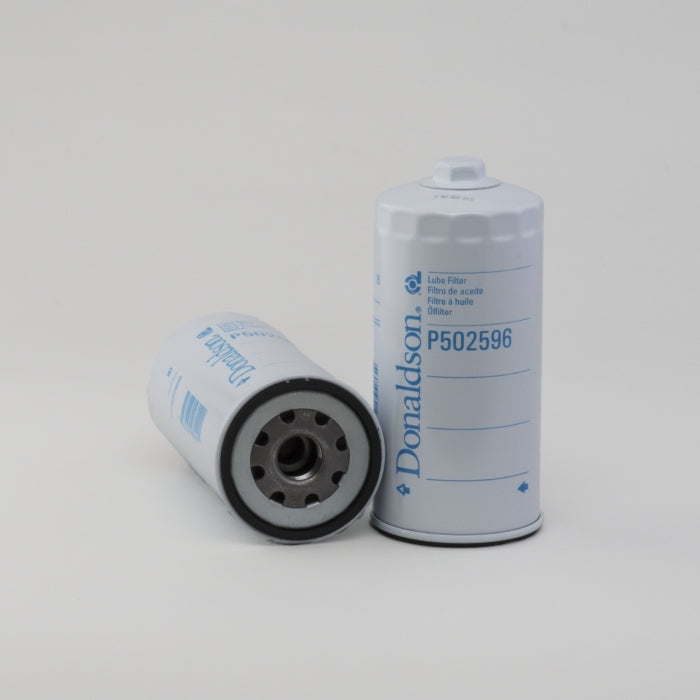

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 108 mm (4.25 inch) |
| Thread Size | M30 x 2 |
| Length | 237 mm (9.33 inch) |
| Gasket OD | 103 mm (4.06 inch) |
| Gasket ID | 92.6 mm (3.65 inch) |
| Efficiency 50% | 9 micron |
| Efficiency 99% | 21 micron |
| Efficiency Test Std | ISO 4548-12 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.4 bar (35 psi) |
| Bypass Valve Setting HR | 2.6 bar (38 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.86 bar (99 psi) |
| Primary Application | LIEBHERR 10297295 |
