Description

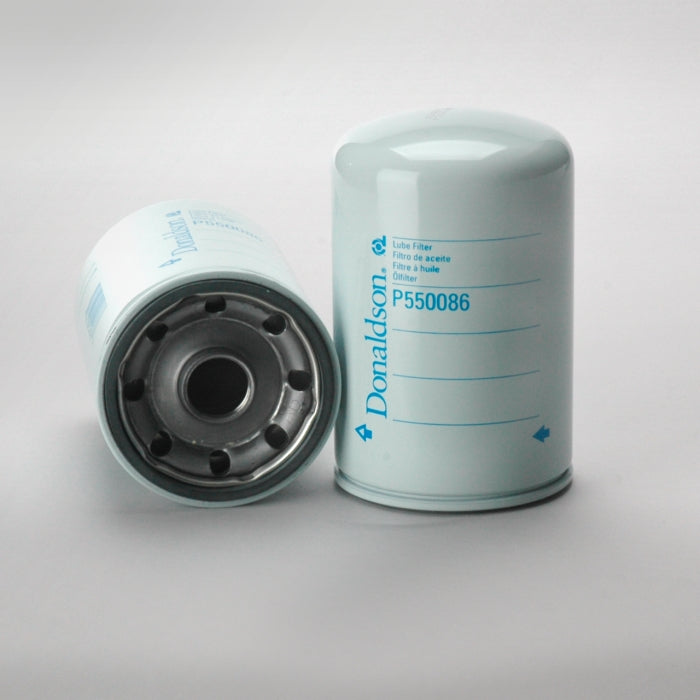

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 108 mm (4.25 inch) |
| Thread Size | 1 1/8-16 UN |
| Length | 167 mm (6.57 inch) |
| Gasket OD | 99 mm (3.90 inch) |
| Gasket ID | 90 mm (3.54 inch) |
| Efficiency 50% | 20 micron |
| Efficiency Test Std | ISO 4572 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.8 bar (26 psi) |
| Bypass Valve Setting HR | 2.1 bar (30 psi) |
| Media Type | Cellulose |
| Collapse Burst | 10 bar (145 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | KOMATSU 6136515120 |
