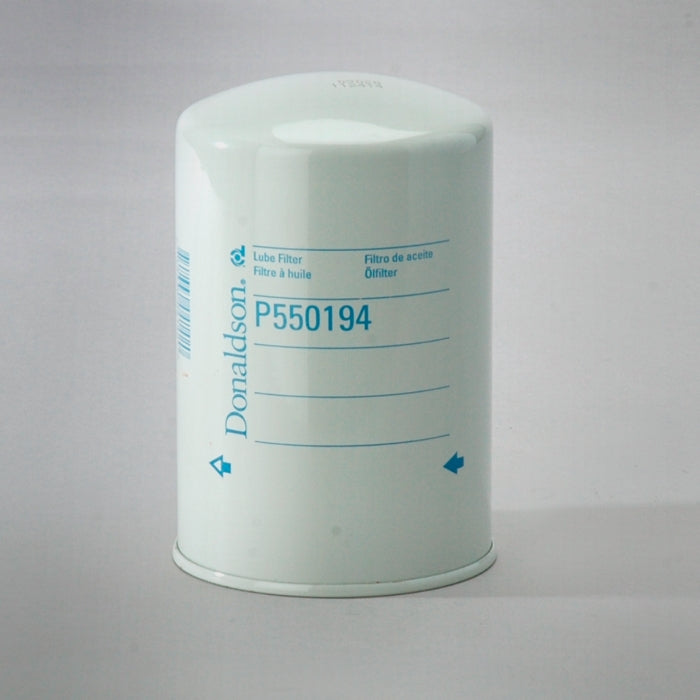

Description
Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 97 mm (3.82 inch) |
| Thread Size | 5/8-18 UN |
| Length | 144 mm (5.67 inch) |
| Gasket OD | 72 mm (2.83 inch) |
| Gasket ID | 63 mm (2.48 inch) |
| Efficiency 99% | 40 micron |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.8 bar (12 psi) |
| Bypass Valve Setting HR | 1 bar (15 psi) |
| Media Type | Cellulose |
| Collapse Burst | 5.5 bar (80 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | WISCONSIN RV38 |
