Description

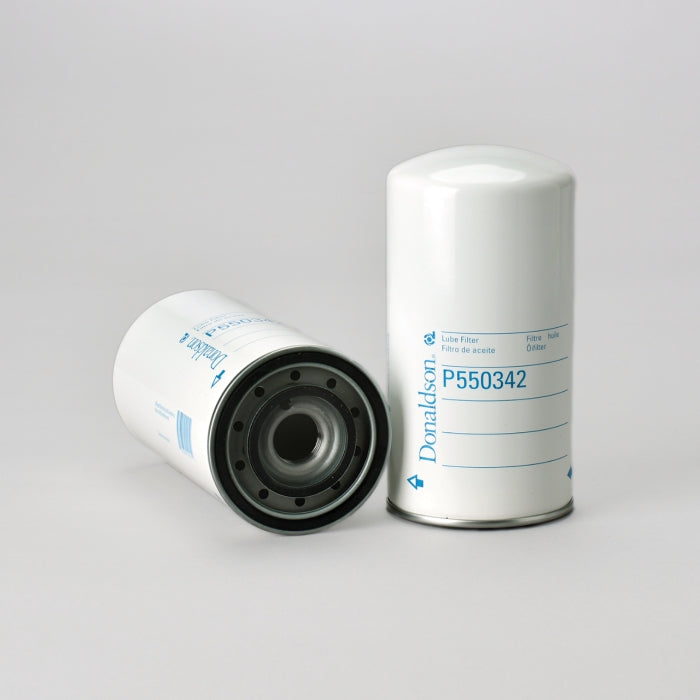

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 109 mm (4.29 inch) |
| Thread Size | M30 x 2 |
| Length | 230 mm (9.06 inch) |
| Gasket OD | 103 mm (4.06 inch) |
| Gasket ID | 92 mm (3.62 inch) |
| Efficiency 50% | 12 micron |
| Efficiency Test Std | ISO 16889 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.3 bar (33 psi) |
| Bypass Valve Setting HR | 2.7 bar (39 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | IVECO 1902102 |
