Description

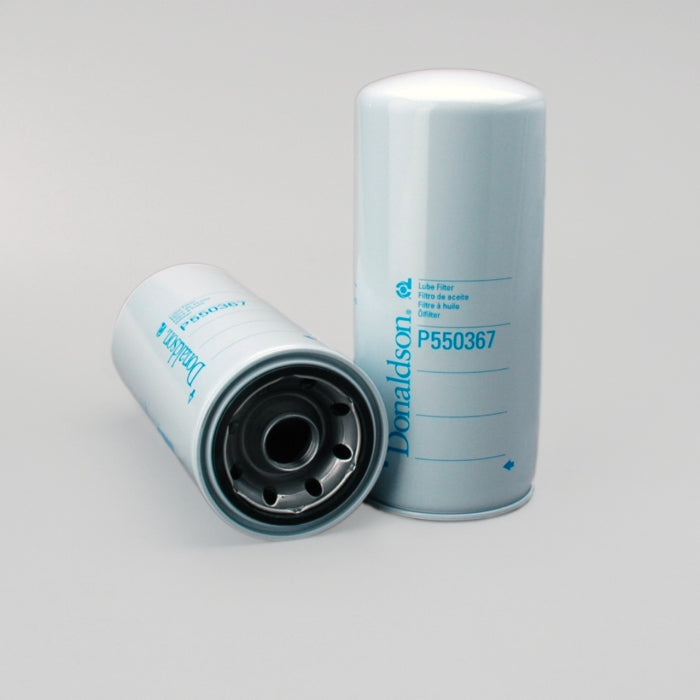

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 136 mm (5.35 inch) |
| Thread Size | M36 x 1.5 |
| Length | 308 mm (12.13 inch) |
| Gasket OD | 110 mm (4.33 inch) |
| Gasket ID | 100 mm (3.94 inch) |
| Efficiency 99% | 21 micron |
| Efficiency Test Std | SAE J1858 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.8 bar (26 psi) |
| Bypass Valve Setting HR | 2.1 bar (30 psi) |
| Media Type | Cellulose |
| Collapse Burst | 10.3 bar (149 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | NAVISTAR 1819452C1 |
