Description

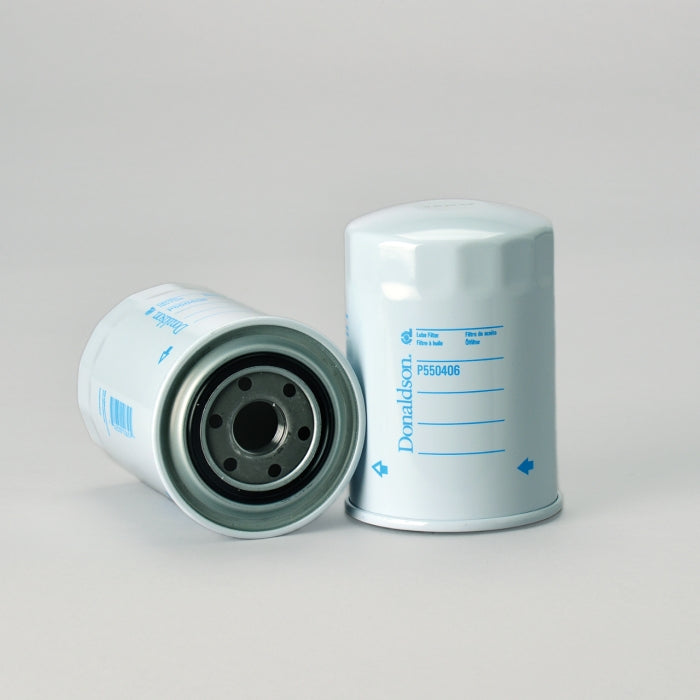

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 107 mm (4.21 inch) |
| Thread Size | M26 x 1.5 |
| Length | 153 mm (6.02 inch) |
| Gasket OD | 73 mm (2.87 inch) |
| Gasket ID | 56 mm (2.20 inch) |
| Efficiency 50% | 16 micron |
| Efficiency Test Std | SAE J806 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.7 bar (25 psi) |
| Bypass Valve Setting HR | 2.1 bar (30 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | HINO 156071480 |
