Description

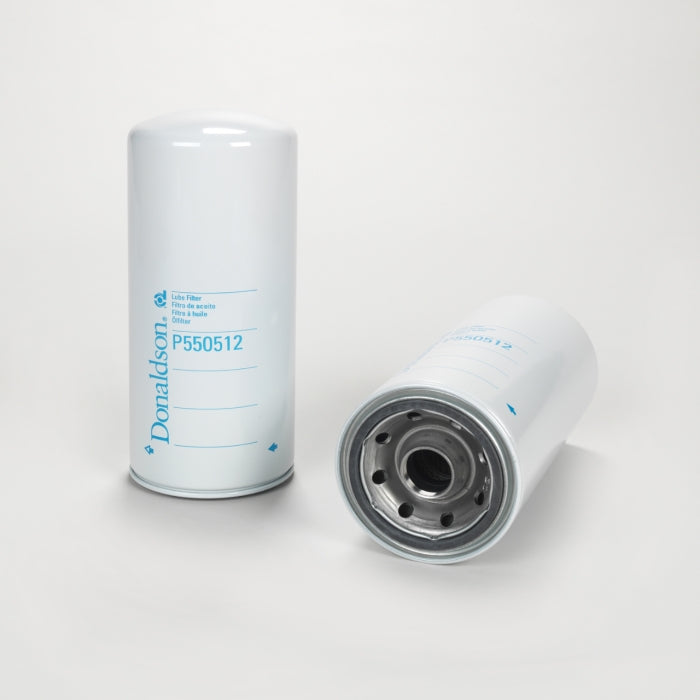

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 135 mm (5.31 inch) |
| Thread Size | M36 x 1.5 |
| Length | 307 mm (12.09 inch) |
| Gasket OD | 109 mm (4.29 inch) |
| Gasket ID | 100 mm (3.94 inch) |
| Efficiency 99% | 21 micron |
| Efficiency Test Std | ISO 16889 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.62 bar (38 psi) |
| Media Type | Cellulose |
| Collapse Burst | 10.3 bar (149 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | DETROIT DIESEL 5241840301 |
