Description

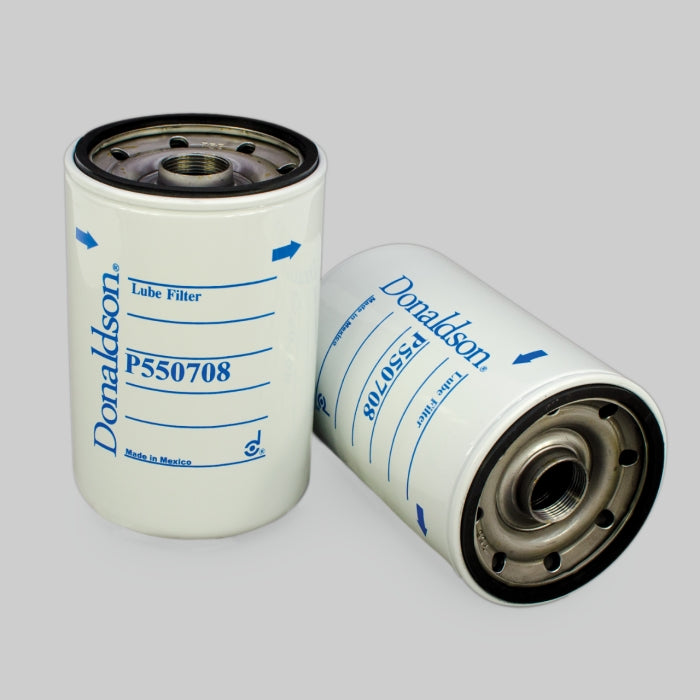

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 108 mm (4.25 inch) |
| Thread Size | 1 1/8-16 UN |
| Length | 167 mm (6.57 inch) |
| Gasket OD | 100 mm (3.94 inch) |
| Gasket ID | 91 mm (3.58 inch) |
| Efficiency 99% | 45 micron |
| Efficiency Test Std | ISO 4572 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.9 bar (28 psi) |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | KOMATSU 6134515120 |
