Description

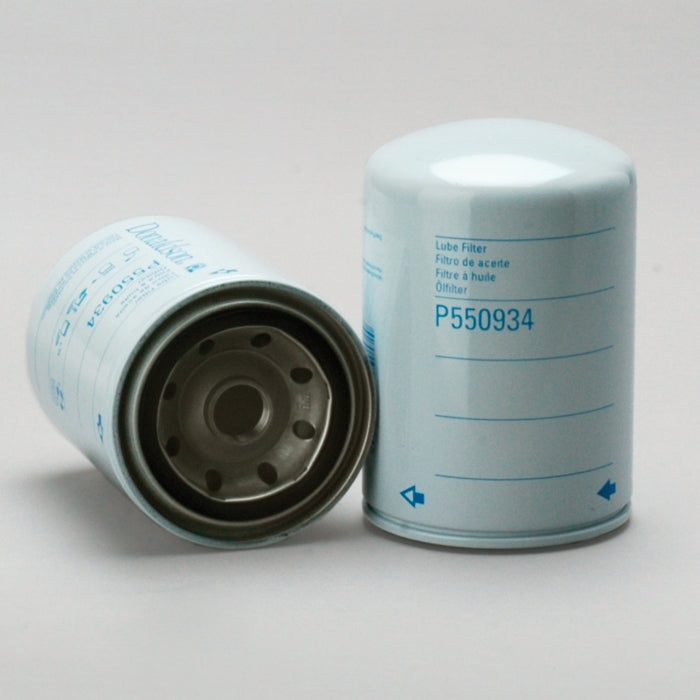

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 93 mm (3.66 inch) |
| Thread Size | M20 x 1.5 |
| Length | 136 mm (5.35 inch) |
| Gasket OD | 72 mm (2.83 inch) |
| Gasket ID | 62 mm (2.44 inch) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | ISO 16889 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.55 bar (8 psi) |
| Bypass Valve Setting HR | 0.75 bar (11 psi) |
| Media Type | Cellulose |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | CATERPILLAR 1N4402H |
