Description

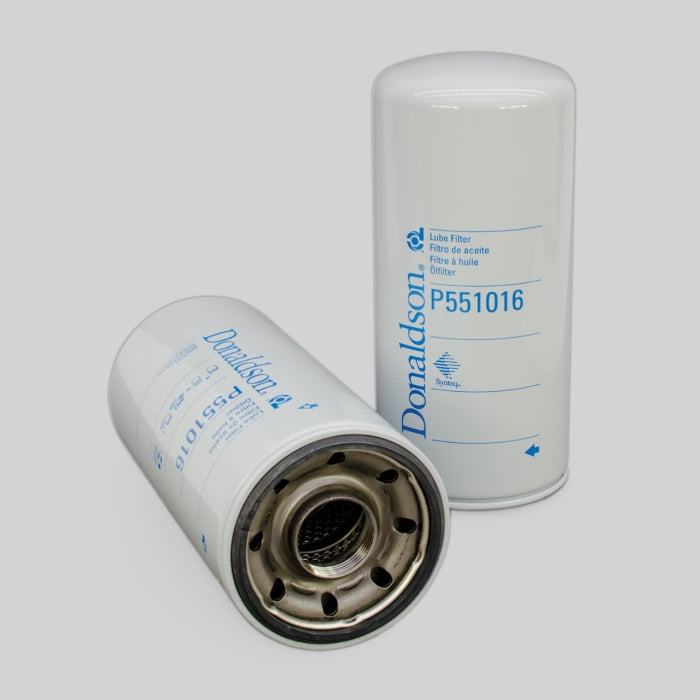

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 118 mm (4.65 inch) |
| Thread Size | 1 5/8-12 UN |
| Length | 260 mm (10.24 inch) |
| Gasket OD | 110 mm (4.33 inch) |
| Gasket ID | 98 mm (3.86 inch) |
| Efficiency 99% | 15 micron |
| Efficiency Test Std | ISO 4548-12 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.8 bar (26 psi) |
| Bypass Valve Setting HR | 2.1 bar (30 psi) |
| Media Type | Synthetic |
| Collapse Burst | 10.3 bar (149 psi) |
| Type | Full-Flow |
| Style | Spin-On |
