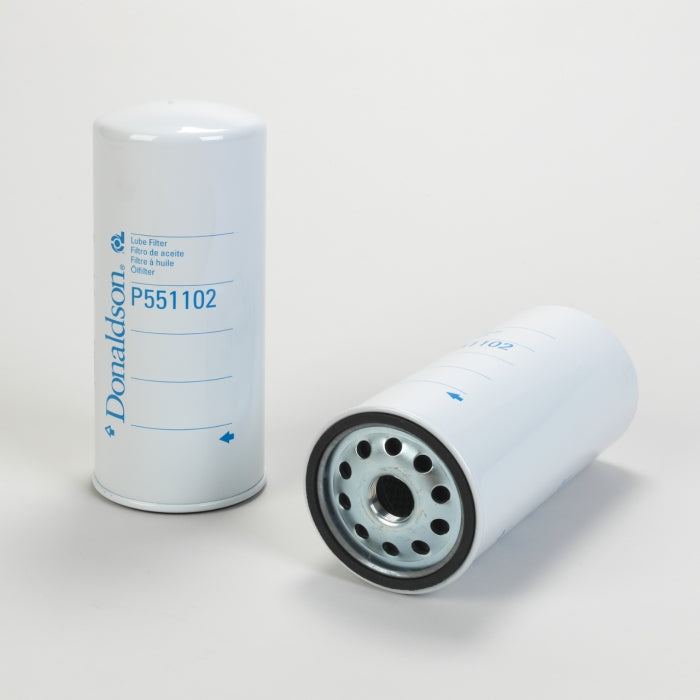

Description
Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 110 mm (4.33 inch) |
| Thread Size | 1 1/8-16 UN |
| Length | 256 mm (10.08 inch) |
| Gasket OD | 102 mm (4.02 inch) |
| Gasket ID | 92 mm (3.62 inch) |
| Efficiency 50% | 20 micron |
| Efficiency Test Std | SAE J1858 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.5 bar (36 psi) |
| Media Type | Cellulose |
| Collapse Burst | 4 bar (58 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | DEUTZ 1174420 |
