Description

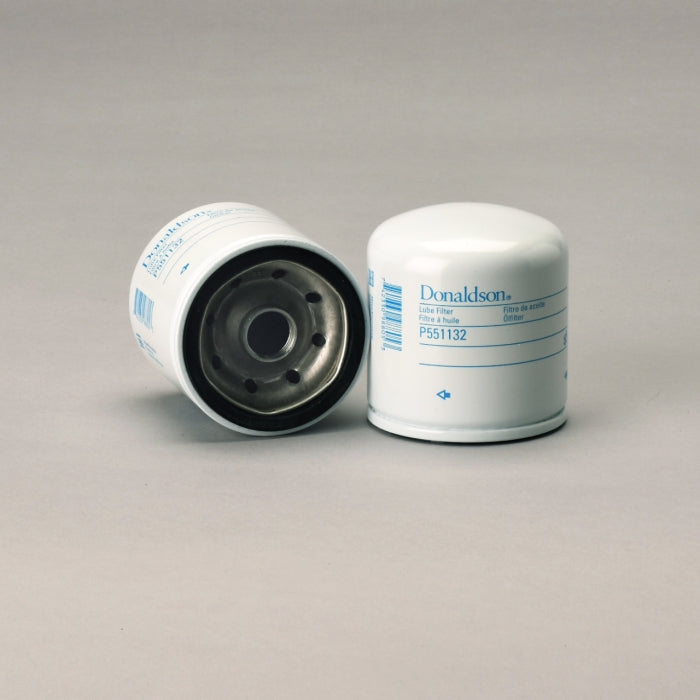

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 76 mm (2.99 inch) |
| Thread Size | 3/4-16 UN |
| Length | 83 mm (3.27 inch) |
| Gasket OD | 70 mm (2.76 inch) |
| Gasket ID | 60 mm (2.36 inch) |
| Efficiency 99% | 17 micron |
| Efficiency Test Std | ISO 16889 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.76 bar (11 psi) |
| Bypass Valve Setting HR | 1.17 bar (17 psi) |
| Media Type | Synteq |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | CASE |
