Description

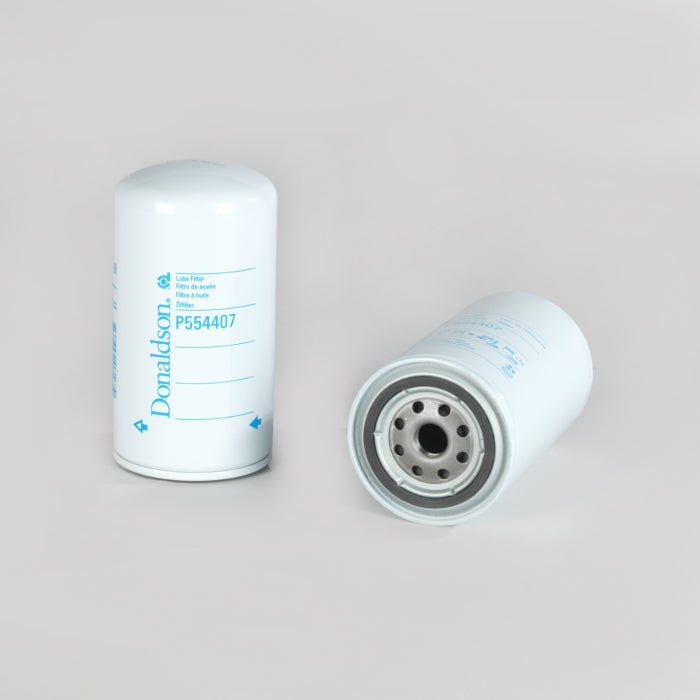

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 93 mm (3.66 inch) |
| Thread Size | 3/4-16 UN |
| Length | 174 mm (6.85 inch) |
| Gasket OD | 72 mm (2.83 inch) |
| Gasket ID | 63 mm (2.48 inch) |
| Efficiency 99% | 48 micron |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.8 bar (12 psi) |
| Bypass Valve Setting HR | 1.2 bar (17 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | PERKINS 2654407 |
