Description

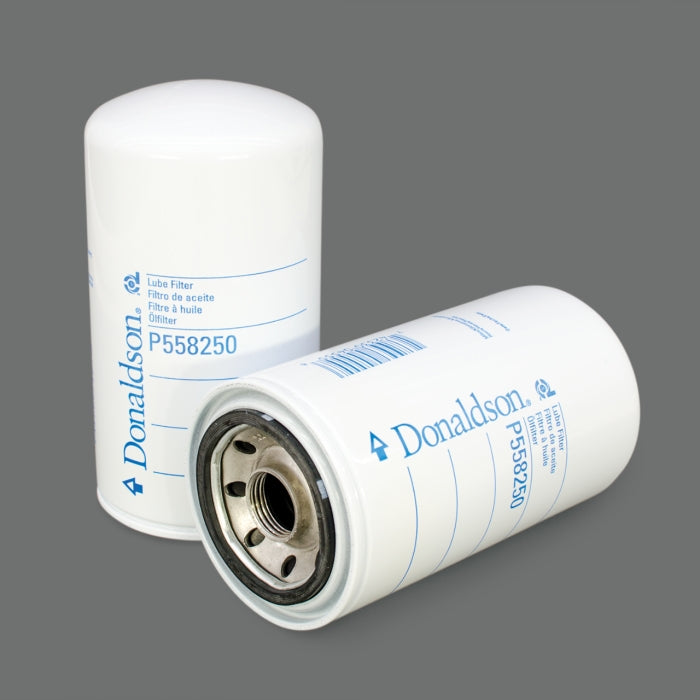

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 93 mm (3.66 inch) |
| Thread Size | 1-12 UN |
| Length | 172 mm (6.77 inch) |
| Gasket OD | 71 mm (2.80 inch) |
| Gasket ID | 61 mm (2.40 inch) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | ISO 4548-12 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.8 bar (12 psi) |
| Bypass Valve Setting HR | 1.2 bar (17 psi) |
| Media Type | Cellulose |
| Collapse Burst | 13.8 bar (200 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | CASE/CASE IH 528250R91 |
