Description

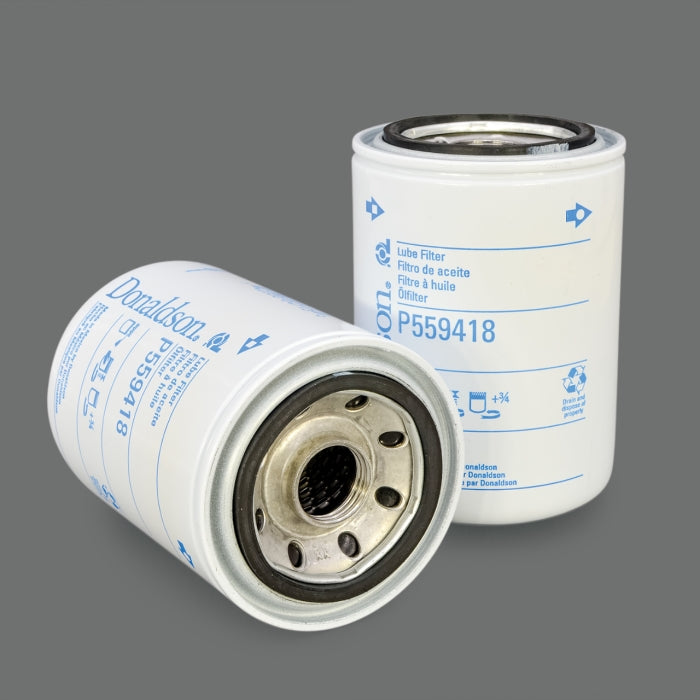

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 95 mm (3.74 inch) |
| Thread Size | 1-12 UN |
| Length | 139 mm (5.47 inch) |
| Gasket OD | 71 mm (2.80 inch) |
| Gasket ID | 61 mm (2.40 inch) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | ISO 4548-12 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.1 bar (30 psi) |
| Bypass Valve Setting HR | 2.6 bar (38 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | DEUTZ 1174418 |
