Description

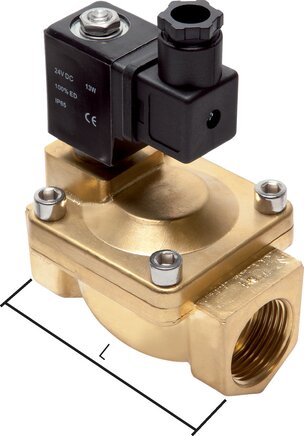

Genuine EMC SLP 114 24V= – SLP 114 24V= (EMC) 2/2-way solenoid valve G 1-1/4", normally closed (NC),NBR Eco. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.
- Part Number: SLP 114 24V=
- Brand: EMC
- Product Type: Pneumatic Component
Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.
Genuine EMC SLP 114 24V= – SLP 114 24V= (EMC) 2/2-way solenoid valve G 1-1/4", normally closed (NC),NBR Eco. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.
- Part Number: SLP 114 24V=
- Brand: EMC
- Product: SLP 114 24V= (EMC) 2/2-way solenoid valve G 1-1/4", normally closed (NC),NBR Eco
Trusted by engineers across the UK, this SLP 114 24V= (EMC) 2/2-way solenoid valve G 1-1/4", normally closed (NC),NBR Eco is available for fast nationwide delivery from Roladex Industrial Supplies.
Item description
Materials:Body: brass, internal parts: brass / stainless steel, seal: NBR (types G 1/8" & G 1/4": FKM)
Temperature range:
-10°C up to max. water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Optional:
FKM seal (-10°C to max. +130°C) -V, EPDM seal for air and warm water (-10°C to max. +120°C) -EP
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
