Description

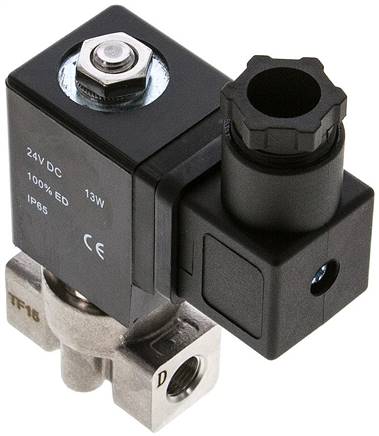

Genuine EMC SLP 18 ES 24V= – SLP 18 ES 24V= (EMC) 2/2-way solenoid valve G 1/8", normally closed (NC), 24 V DC Eco. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.
- Part Number: SLP 18 ES 24V=
- Brand: EMC
- Product Type: Pneumatic Component
Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.
Genuine EMC SLP 18 ES 24V= – SLP 18 ES 24V= (EMC) 2/2-way solenoid valve G 1/8", normally closed (NC), 24 V DC Eco. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.
- Part Number: SLP 18 ES 24V=
- Brand: EMC
- Product: SLP 18 ES 24V= (EMC) 2/2-way solenoid valve G 1/8", normally closed (NC), 24 V DC Eco
Trusted by engineers across the UK, this SLP 18 ES 24V= (EMC) 2/2-way solenoid valve G 1/8", normally closed (NC), 24 V DC Eco is available for fast nationwide delivery from Roladex Industrial Supplies.
Item description
Materials:Bodies: 1.4408, internal parts: stainless steel, seal: FKM
Temperature range:
-20°C to +120°C, ambience: max. +65 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
P (plug size 3)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
