Description

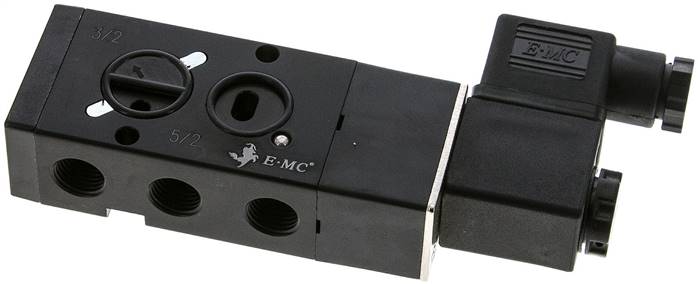

Genuine EMC V 5231-08MG-230V – V 5231-08MG-230V (EMC) 3/2- and 5/2-way NAMUR solenoid valve G1/4", 230 V AC. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.
- Part Number: V 5231-08MG-230V
- Brand: EMC
- Product Type: Pneumatic Component
Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.
Genuine EMC V 5231-08MG-230V – V 5231-08MG-230V (EMC) 3/2- and 5/2-way NAMUR solenoid valve G1/4", 230 V AC. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.
- Part Number: V 5231-08MG-230V
- Brand: EMC
- Product: V 5231-08MG-230V (EMC) 3/2- and 5/2-way NAMUR solenoid valve G1/4", 230 V AC
Trusted by engineers across the UK, this V 5231-08MG-230V (EMC) 3/2- and 5/2-way NAMUR solenoid valve G1/4", 230 V AC is available for fast nationwide delivery from Roladex Industrial Supplies.
Item description
Materials:Body and slider: aluminum, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1.5 to 8 bar
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec.
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
T (plug size 1)
Service life:
min. 12 million switching cycles
Advantages:
•Simply by rotating the seal, the valve can be changed between 3/2-way and 5/2-way function
•Economical, as the same valve can be used for single-acting drives.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
