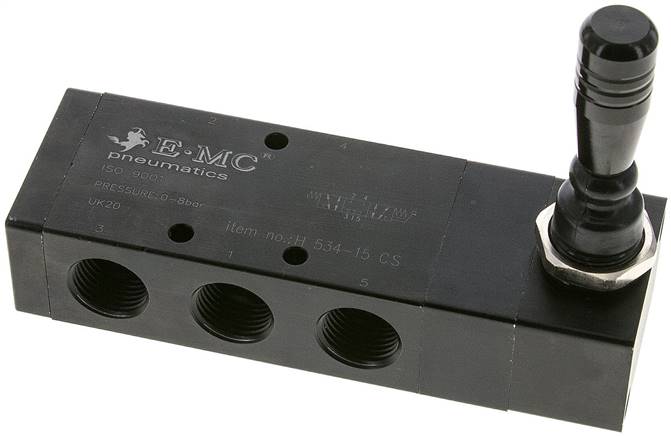

H 534-15 CS (EMC) 5/3-way hand lever valve, G 1/2", Center position closed, spring return

Genuine EMC H 534-15 CS – H 534-15 CS (EMC) 5/3-way hand lever valve, G 1/2", Center position closed, spring return. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: H 534-15 CS
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC H 534-15 CS – H 534-15 CS (EMC) 5/3-way hand lever valve, G 1/2", Center position closed, spring return. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: H 534-15 CS
• Brand: EMC
• Product: H 534-15 CS (EMC) 5/3-way hand lever valve, G 1/2", Center position closed, spring return

Trusted by engineers across the UK, this H 534-15 CS (EMC) 5/3-way hand lever valve, G 1/2", Center position closed, spring return is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and slider: aluminum, seals: NBR

Temperature range:
-5 to +60 °C

Operating pressure:
0 to 8 bar

Media:
oiled and unoiled filtered compressed air

Pressure input:
Possible on every connection function Center position closed, spring return Thread G1 (3x) G 1/2" Thread exhaust air G2 (2x) G 1/2" Nominal width [mm] 6.2 flow [l/min] 1350 A [mm] 154.0 B [mm] 50 C [mm] 34 D [mm] 57.0 E [mm] 43.0 F [mm] 28 H [mm] 5.5 J [mm] 36 K [mm] 110 M [mm] 25.5 N [mm] 63 O [mm] 39.0 P [mm] 4 S [mm] 36 T [mm] 57.0 U M 22x1.5 V [mm] 5 W [mm] 0 X [mm] 4 Weight 700 g / pcs GTIN 4050571350192 Customs duty number 84812090 RoHS compliant Yes Manufacturer EMC
