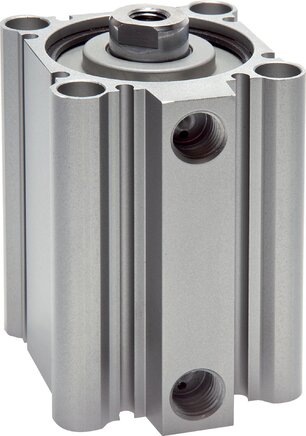

SQN 100/100 SZ (EMC) Compact cylinders, double acting, piston 100 mm, stroke 100 mm

Genuine EMC SQN 100/100 SZ – SQN 100/100 SZ (EMC) Compact cylinders, double acting, piston 100 mm, stroke 100 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SQN 100/100 SZ
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SQN 100/100 SZ – SQN 100/100 SZ (EMC) Compact cylinders, double acting, piston 100 mm, stroke 100 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SQN 100/100 SZ
• Brand: EMC
• Product: SQN 100/100 SZ (EMC) Compact cylinders, double acting, piston 100 mm, stroke 100 mm

Trusted by engineers across the UK, this SQN 100/100 SZ (EMC) Compact cylinders, double acting, piston 100 mm, stroke 100 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR

Temperature range:
10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2) Piston diameter [mm] 100 Stroke [mm] 100 H (piston rod thread) M 20 G (compressed air port) G 3/8" Repair sets SQN 100 REP A [mm] 75,0 B [mm] 63,0 C [mm] 27 D [mm] 30 E [mm] 117 F [mm] 13,0 J [mm] 6,5 K [mm] 27 L [mm] 12,0 M [mm] 94 N [mm] 11,0 O [mm] 17 (11 deep) P M 12 P1 [mm] 35,5 Q [mm] 23,0 Weight 4 kg / pcs GTIN 4050571638313 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
