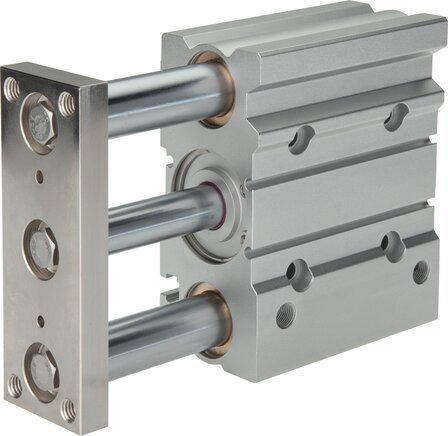

EMC Guide Cylinder, With Slide Bearing, Pistons 50Mm,Stroke 200Mm

EMC Guide – Cylinder, With Slide Bearing, Pistons 50Mm,Stroke 200Mm

Genuine EMC part Guide. Ideal for maintenance and replacement on pneumatic systems. If you’re matching an existing unit, the part number is the safest way to confirm compatibility.

• Part number: Guide
• Product: Cylinder, With Slide Bearing, Pistons 50Mm,Stroke 200Mm
• Brand: EMC
• Support: Need help cross-referencing? Send us your existing code/label and we’ll confirm.

Delivery & trade: Fast UK supply available. Request a quote for best pricing on quantities.

---

Item description

Materials:
Body: Anodized aluminum, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminum, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM Piston diameter [mm] 50 Stroke [mm] 200 Version with slide bearing G (compressed air port) G 1/4" Repair sets SGM 50 REP lateral force permissible [N] 164 permissible torque at the end-?plate [Nm] 7,24 C [mm] 44,0 D [mm] 25 D1 [mm] 20 E [mm] 62,0 FA [mm] 16 FB [mm] 28 GA [mm] 11,0 GB [mm] 12,0 GC [mm] 21,5 GD [mm] 9,0 GE [mm] 14,0 H [mm] 148 J [mm] 47,0 K [mm] 86 L1 [mm] 8 L2 [mm] 4 M M 10 M1 [mm] 20 ML [mm] 22 MM M 10 N [mm] 24 NN [mm] 124 P [mm] 8,7 PA (+0,03 / -0) [mm] 5 PP [mm] 6,0 Q [mm] 40 QL [mm] 130 R (± 0,02) [mm] 66 RR [mm] 110 T [mm] 14.0 (9.0 deep) V [mm] 92 VA [mm] 13,5 VB [mm] 8,5 VC [mm] 7,5 VD [mm] 4,5 VE [mm] 13,5 W [mm] 64 WA [mm] 130 WB [mm] 46 WL [mm] 146 WW [mm] 60 Weight 8 kg / pcs GTIN 4050571873912 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
