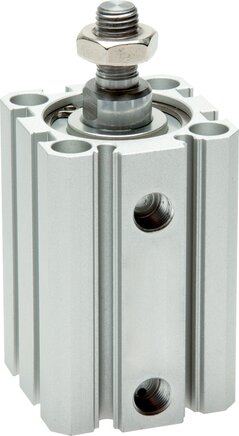

SFS 100/200-B (EMC) ISO 21287 cylinders, double acting, piston 100 mm, stroke 200 mm

Genuine EMC SFS 100/200-B – SFS 100/200-B (EMC) ISO 21287 cylinders, double acting, piston 100 mm, stroke 200 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SFS 100/200-B
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SFS 100/200-B – SFS 100/200-B (EMC) ISO 21287 cylinders, double acting, piston 100 mm, stroke 200 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SFS 100/200-B
• Brand: EMC
• Product: SFS 100/200-B (EMC) ISO 21287 cylinders, double acting, piston 100 mm, stroke 200 mm

Trusted by engineers across the UK, this SFS 100/200-B (EMC) ISO 21287 cylinders, double acting, piston 100 mm, stroke 200 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: aluminium, cylinder tube: anodized aluminium, piston rod: stainless steel (Ø 32 100: hard chromium plated steel), seal: NBR / PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread B Piston diameter [mm] 100 Stroke [mm] 200 Version Piston rod with male thread KK (piston rod male thread) M 16x1,5 G (compressed air port) G 1/8" Repair sets SFS 100 REP A [mm] 28 AD [mm] 32 AF [mm] 21 BG [mm] 25 CH [mm] 27 E [mm] 109,0 E1 [mm] 4,5 LA [mm] 5 PL1 [mm] 24,5 PL2 [mm] 19,0 RT M 10 S [mm] 14 TG [mm] 89,0 WH [mm] 10 ZA [mm] 67 ZB [mm] 77 Weight 6 kg / pcs GTIN 4050571927219 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
