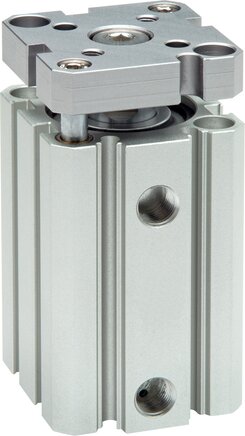

SFSA 20/15 (EMC) ISO 21287 cylinders, double acting, piston 20 mm, stroke 15 mm

Genuine EMC SFSA 20/15 – SFSA 20/15 (EMC) ISO 21287 cylinders, double acting, piston 20 mm, stroke 15 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SFSA 20/15
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SFSA 20/15 – SFSA 20/15 (EMC) ISO 21287 cylinders, double acting, piston 20 mm, stroke 15 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SFSA 20/15
• Brand: EMC
• Product: SFSA 20/15 (EMC) ISO 21287 cylinders, double acting, piston 20 mm, stroke 15 mm

Trusted by engineers across the UK, this SFSA 20/15 (EMC) ISO 21287 cylinders, double acting, piston 20 mm, stroke 15 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: aluminum, cylinder tube: anodized aluminum, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -B Piston diameter [mm] 20 Stroke [mm] 15 Version non-?rotating piston rod G (compressed air port) M 5 Repair sets SFS 20 REP OD [mm] 10 AF [mm] 8 BG [mm] 15 D1 [mm] 17 D2 M 4 D3 [mm] 4 E [mm] 36.0 KJ [mm] 35.0 LA [mm] 5 PL1 [mm] 15.5 PL2 [mm] 5.5 RS [mm] 4.2 RT M 5 RU [mm] 7.3 S [mm] 3 TG [mm] 22.0 ZA [mm] 37 ZD [mm] 51.0 Weight 200 g / pcs GTIN 4050571931827 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
