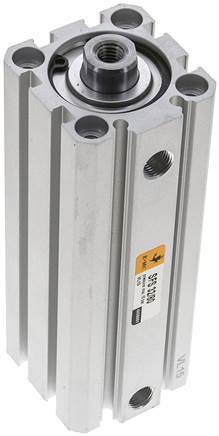

SFS 32/80 (EMC) ISO 21287 cylinders, double acting, piston 32 mm, stroke 80 mm

Genuine EMC SFS 32/80 – SFS 32/80 (EMC) ISO 21287 cylinders, double acting, piston 32 mm, stroke 80 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SFS 32/80
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SFS 32/80 – SFS 32/80 (EMC) ISO 21287 cylinders, double acting, piston 32 mm, stroke 80 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SFS 32/80
• Brand: EMC
• Product: SFS 32/80 (EMC) ISO 21287 cylinders, double acting, piston 32 mm, stroke 80 mm

Trusted by engineers across the UK, this SFS 32/80 (EMC) ISO 21287 cylinders, double acting, piston 32 mm, stroke 80 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: aluminum, cylinder tube: anodized aluminum, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -B Piston diameter [mm] 32 Stroke [mm] 80 Version Standard KF (piston rod female thread) M 8 G (compressed air port) G 1/8" Repair sets SFS 32 REP AD [mm] 16 AF [mm] 12 BG [mm] 16 CH [mm] 14 E [mm] 45.5 E1 [mm] 2.5 LA [mm] 5 PL1 [mm] 15.5 PL2 [mm] 8.0 RT M 6 S [mm] 0 TG [mm] 32.5 WH [mm] 7 ZA [mm] 44 ZB [mm] 51 Weight 600 g / pcs GTIN 4050571928162 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
